X-ray & Optical Images of Planetary Nebulas

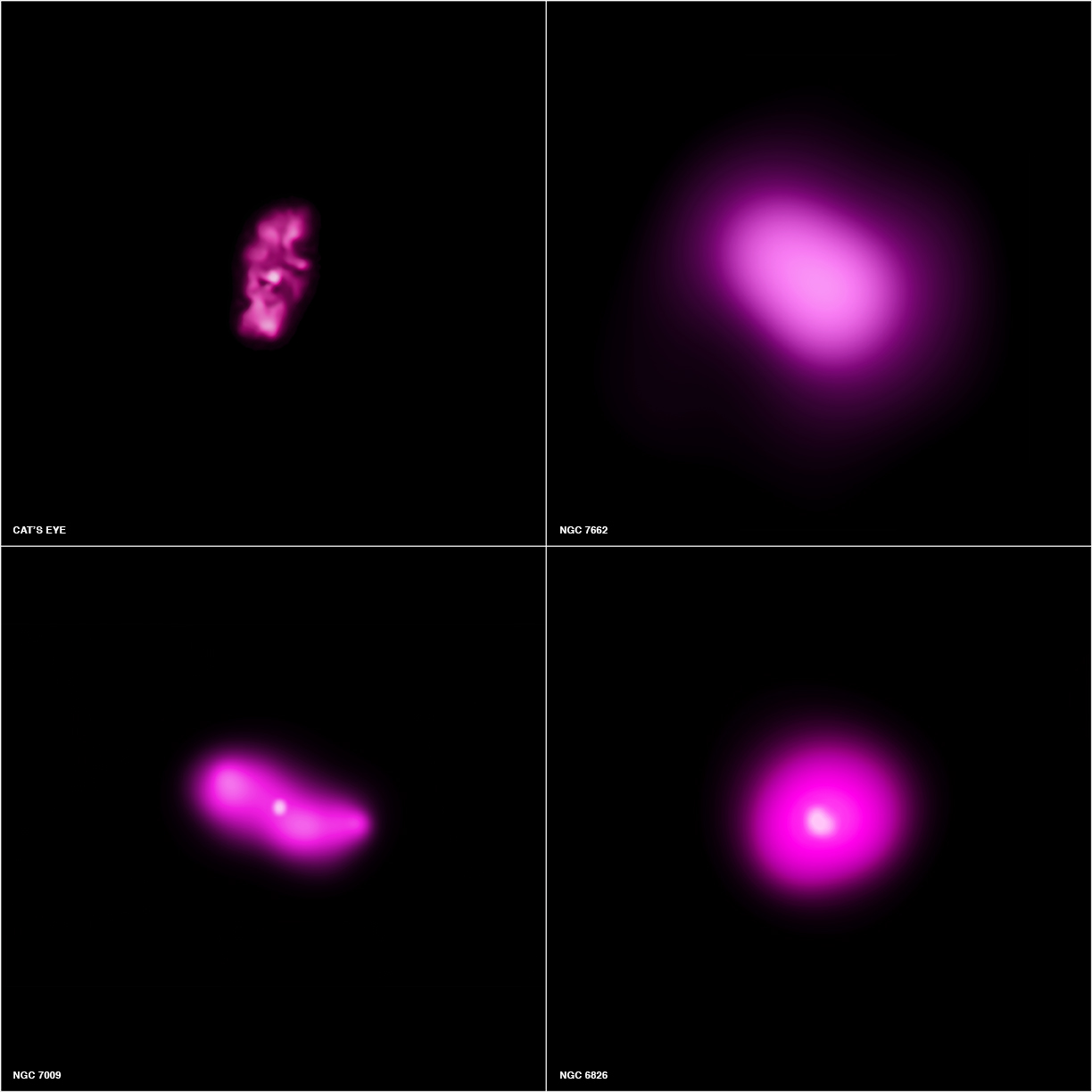

This gallery shows four planetary nebulas from the first systematic survey of such objects in the solar neighborhood made with NASA's Chandra X-ray Observatory. The planetary nebulas included here are NGC 6543 (aka the Cat's Eye), NGC 7662, NGC 7009 and NGC 6826. X-ray emission from Chandra is colored purple and optical emission from the Hubble Space Telescope is colored red, green and blue. A planetary nebula is a phase of stellar evolution that the sun should experience several billion years from now, when it expands to become a red giant and then sheds most of its outer layers, leaving behind a hot core that contracts to form a dense white dwarf star. A wind from the hot core rams into the ejected atmosphere, creating the shell-like filamentary structures seen with optical telescopes. The diffuse X-ray emission is caused by shock waves as the wind collides with the ejected atmosphere. The properties of the X-ray point sources in the center of about half of the planetary nebulas suggest that many central stars responsible for ejecting planetary nebulas have companion stars.
(Credit: X-ray: NASA/CXC/RIT/J.Kastner et al.; Optical: NASA/STScI)
2
Click for large jpg Composite
Jpeg, Tif
Click for large jpg X-ray
Jpeg, Tif
Click for large jpg Optical
Jpeg, Tif

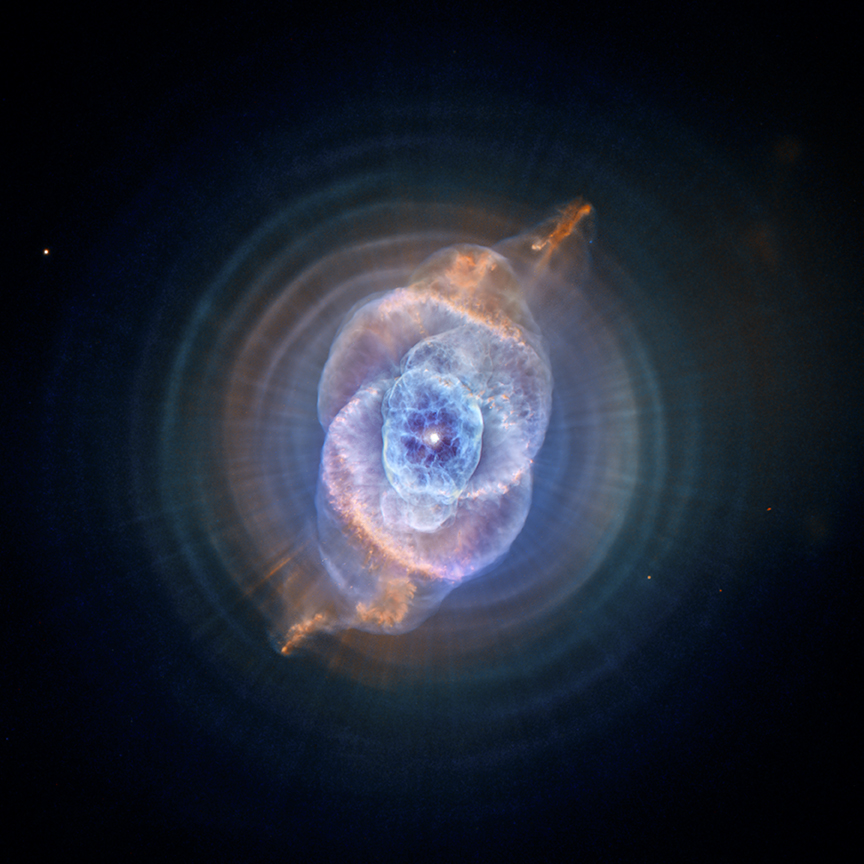

X-ray & Optical Images of NGC 6543

(Credit: X-ray: NASA/CXC/RIT/J.Kastner et al.; Optical: NASA/STScI)
3
Click for large jpg Composite
Jpeg, Tif
Click for large jpg X-ray
Jpeg, Tif
Click for large jpg Optical
Jpeg, Tif

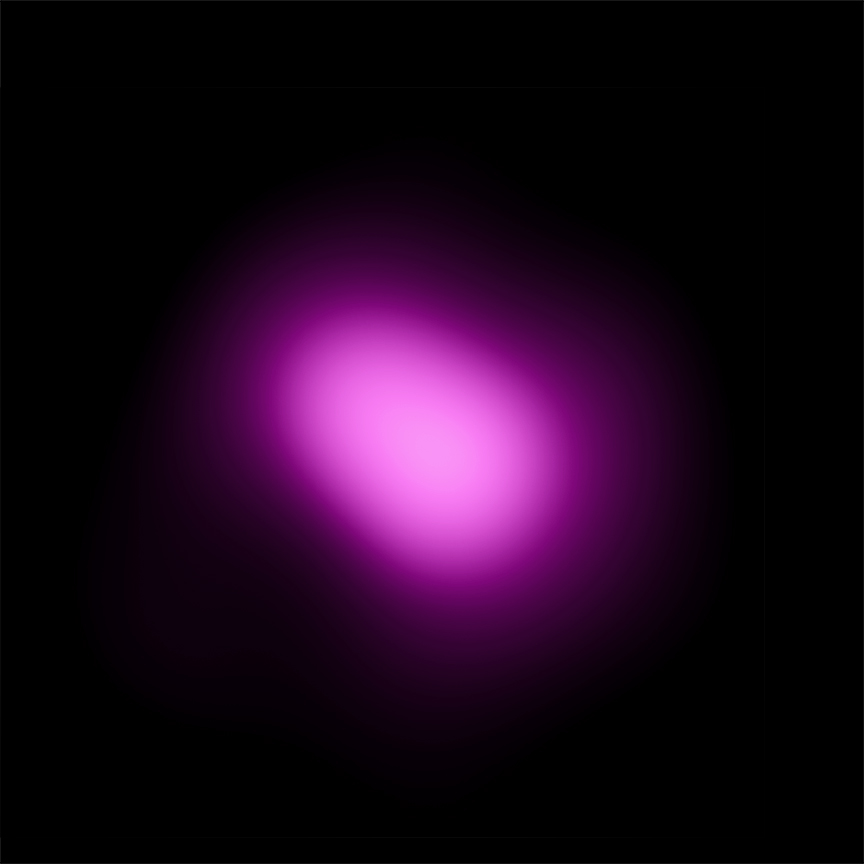

X-ray & Optical Images of NGC 7662

(Credit: X-ray: NASA/CXC/RIT/J.Kastner et al.; Optical: NASA/STScI)
4
Click for large jpg Composite
Jpeg, Tif
Click for large jpg X-ray
Jpeg, Tif
Click for large jpg Optical
Jpeg, Tif

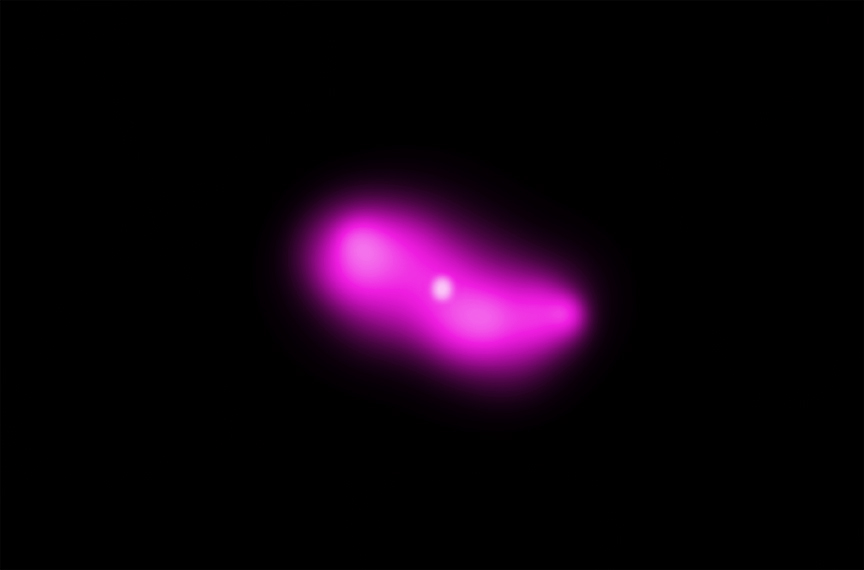

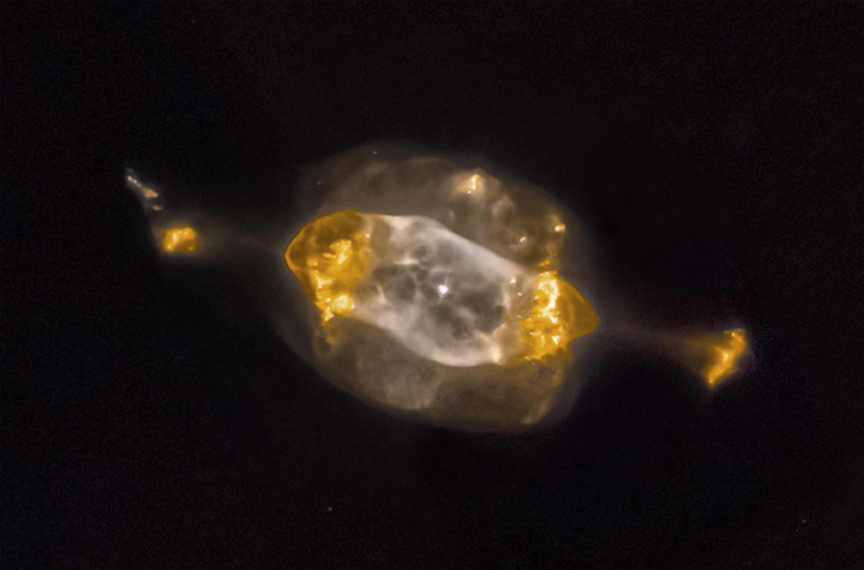

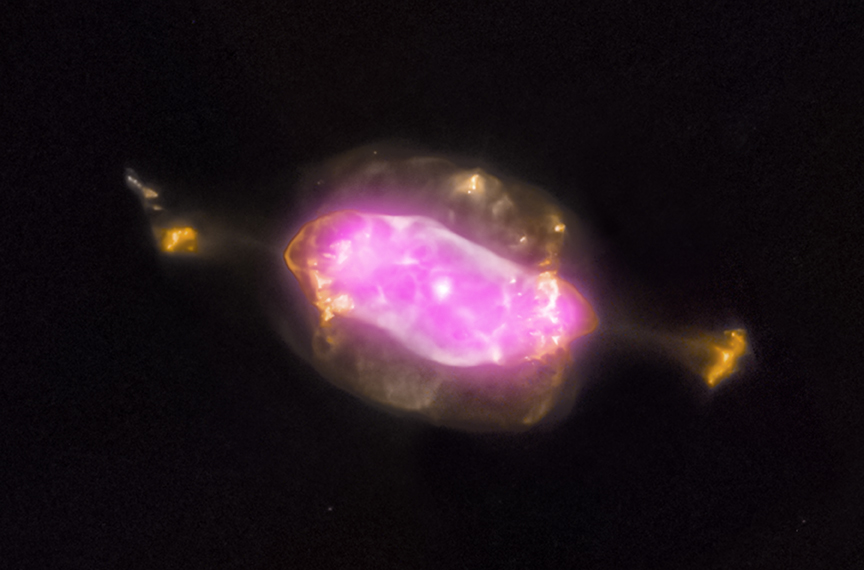

X-ray & Optical Images of NGC 7009

(Credit: X-ray: NASA/CXC/RIT/J.Kastner et al.; Optical: NASA/STScI)
5
Click for large jpg Composite
Jpeg, Tif
Click for large jpg X-ray
Jpeg, Tif
Click for large jpg Optical
Jpeg, Tif

X-ray & Optical Images of NGC 6826

(Credit: X-ray: NASA/CXC/RIT/J.Kastner et al.; Optical: NASA/STScI)


Return to NGC 6543 (October 10, 2012)
